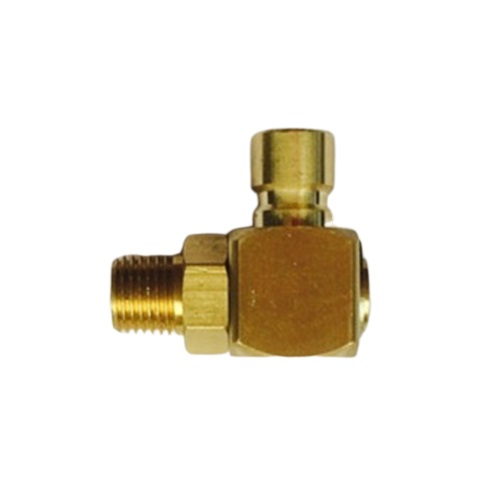

Japanese Standard Angle 90 Hex Hose Nipple

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button


Part No TJPLJM1;TJPLJM2; TJPLJM3; TJPLJ1; TJPLJ2;TJPLJ3
Material Brass
Shape Angle 90
Temperature Rage -20℃ to max 160℃
Working Pressure 0-20bar
Mold no valve

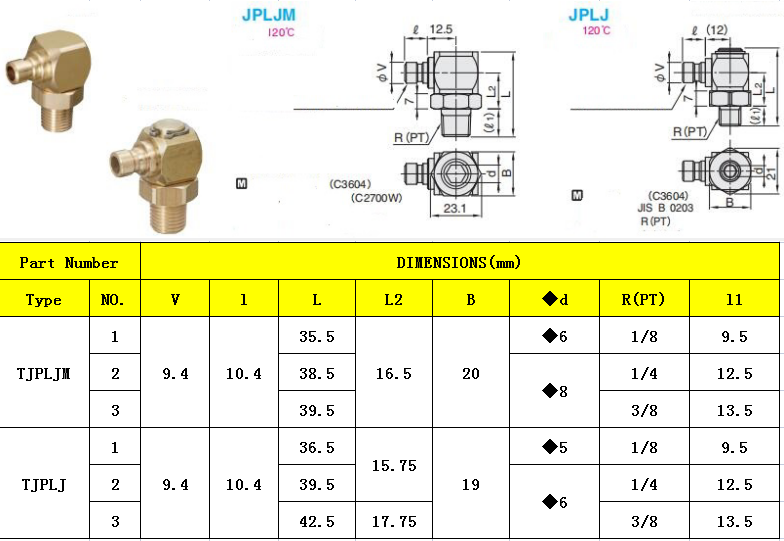

TJPLJM-TJPLJ LIST
