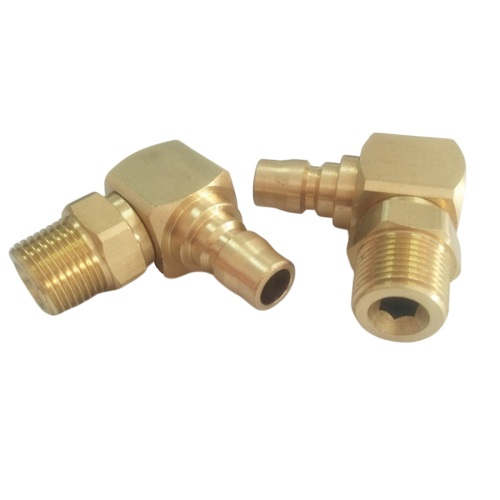

TJPHLM Series Brass Angle 90 Hex Nipple

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button


Part No TJPHLM1;TJPHLM2;TJPHLM3; TJPHL1; TJPHL2; TJPHL3
Material Brass
Shape Angle 90
Temperature Rage -20℃ to max 160℃
Working Pressure 0-20bar
Mold no valve

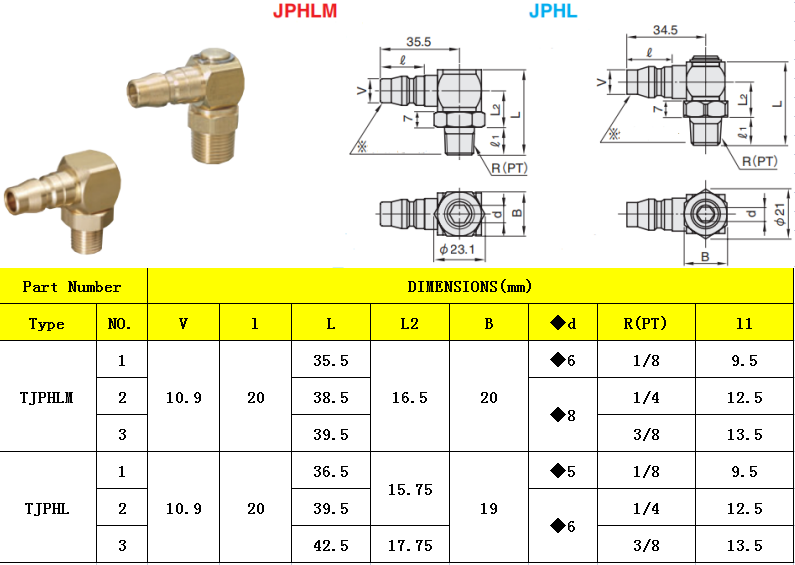

TJPHLM-TJPHL LIST
