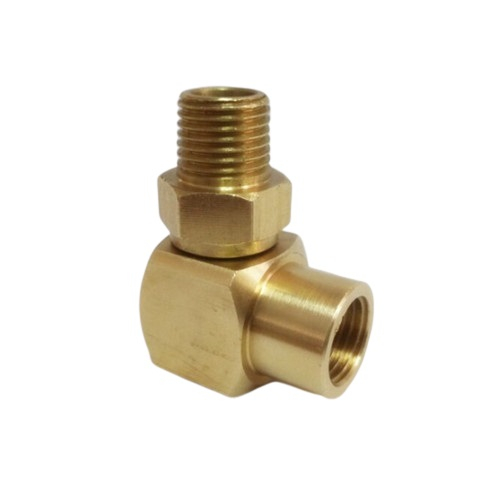

TLSNFM Series Brass Angle 90 Male And Female Nipple Plug

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button


Part No TLSNFM1; TLSNFM2; TLSNFM3
Material Brass
Shape Angle 90
Temperature Rage -20℃ to max 160℃
Working Pressure 0-20bar
Mold no valve

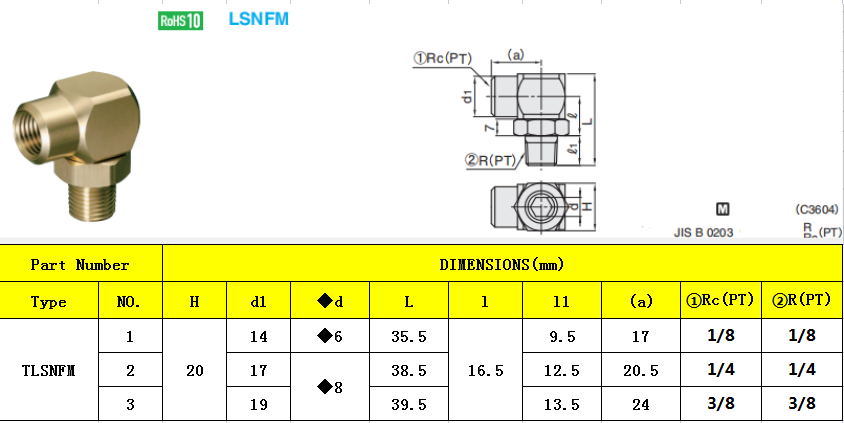

TLSNFM LIST
