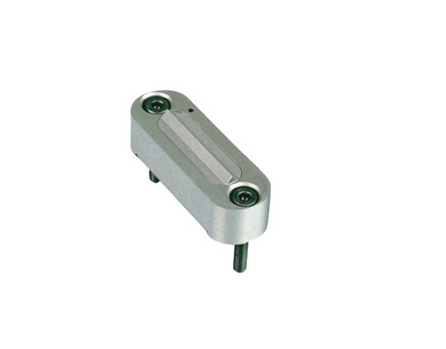

TZ5140 Series Slide Retainer

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

  1. Compared with SSLK series, it adopts the inner springs to make the installation simply.

  2. The extended 90 degree V-groove shoulder ensure the lock more balance and stable.

Part No TZ5140/0; TZ5140/1
Material 1.2343
Hardness 54-2HRC

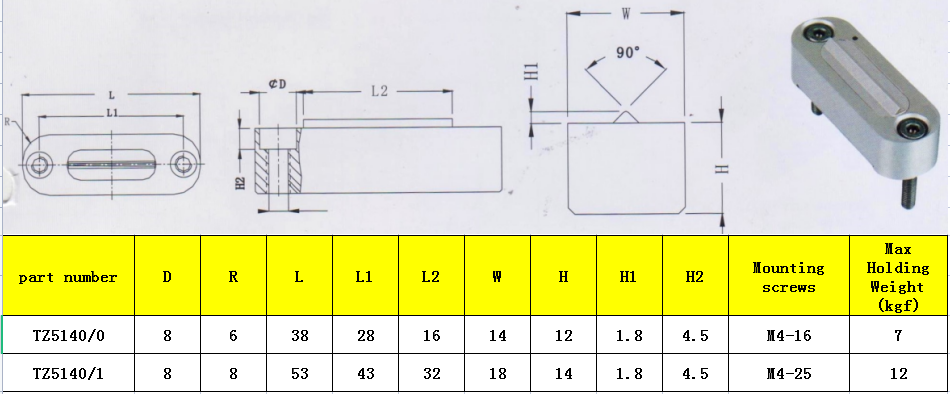

Z5140-0 and1 list
