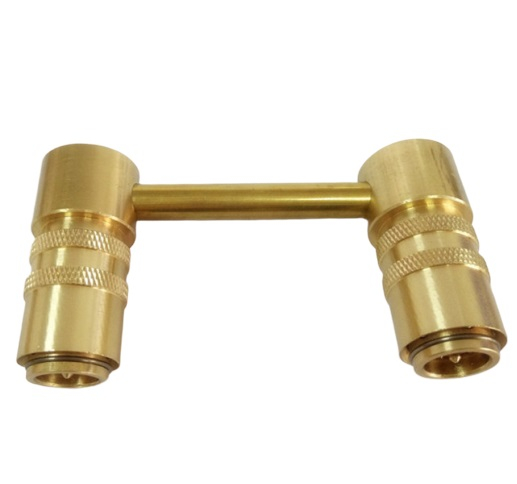

coolant bridge consists of two coupling adapters (including O-rings) and one chamfered brass tube.
coolant bridge coupling adapters will provide one way shut off when used with standard male , female and extension plugs and two way shut off when used with sv seires male nipple plugs.
maximum temperature rating is 200℃, miximum PSI rating is 200

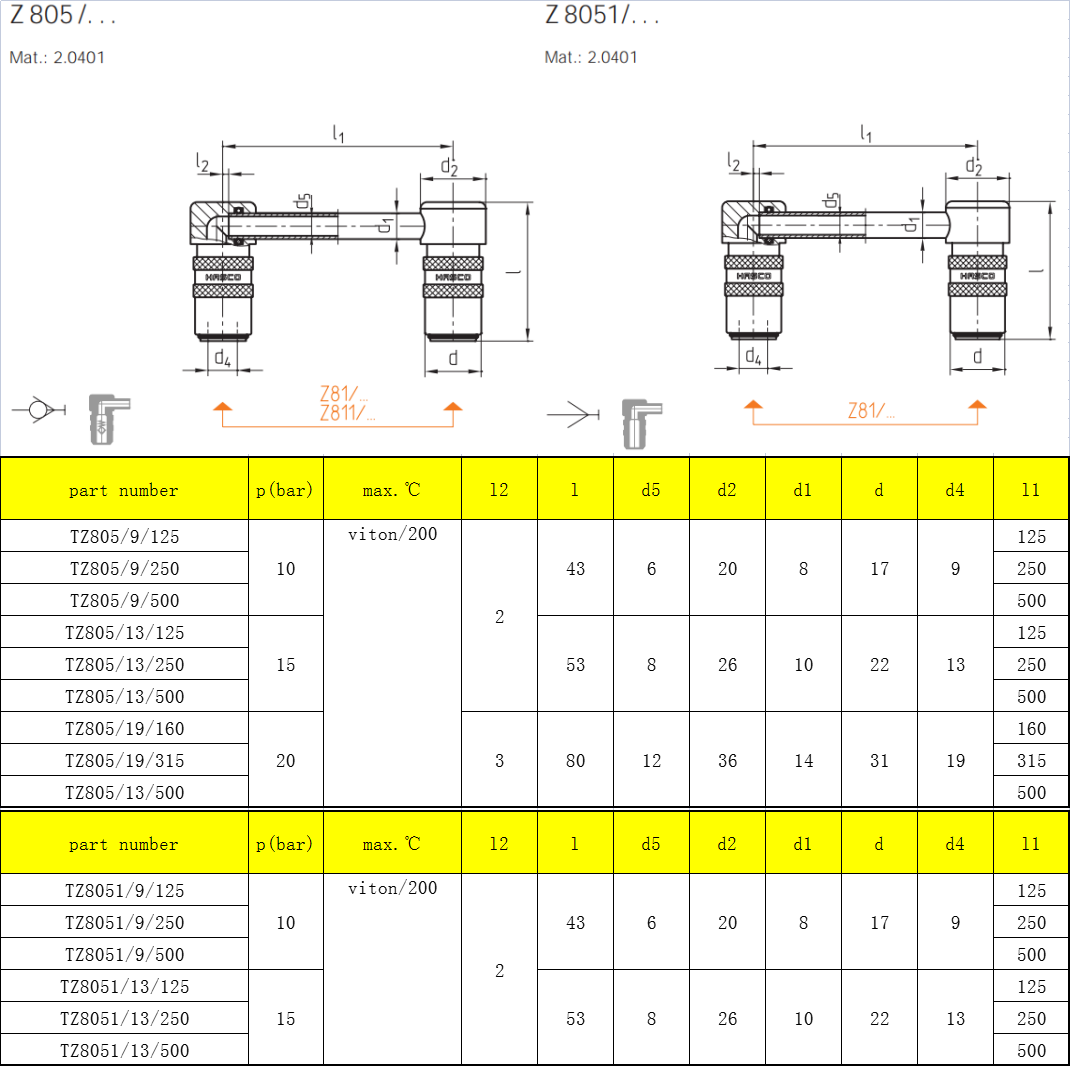

| Part No | TZ805 Series; TZ8051 Series |
| Material | Brass |
| Shape | Angle 90 |
| Temperature Rage | -20℃ to max 160℃ |
| Working Pressure | 0-20bar |
| Mold | open flow and with valve |
